Coffee Roaster Afterburners - Reduce Smoke, Odor & VOC

Catalytic Oxidizer Systems
Clean Stream Afterburners drastically reduce Smoke, Odor, Fine Particulate, CO and VOC created during the coffee roasting process. Our most fuel-efficient Clean Streams are considered "Catalytic Oxidizers" because they use a small gas burner and a "catalyst module" to facilitate the break-down of exhaust pollutants. They typically achieve a 95% destruction efficiency at only 750 F. The low operating temperature means they use substantially less fuel than standard afterburners which operate at around 1300 F, making the Clean Stream substantially less expensive to operate. All Clean Streams have multiple safeties and feature UL, CE and CUL listed components. Clean Stream Afterburners offer the perfect blend of modern aesthetics, efficiency and functionality.

Is your coffee roastery receiving smoke and odor complaints?
Clean Stream Afterburners are the solution! Please contact us for a detailed proposal.

Clean Stream Afterburners reduce smoke, odor, VOC & CO created by commercial coffee roasters during the green coffee bean roasting process.

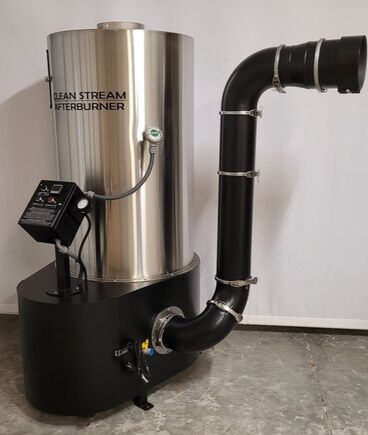

Clean Stream Afterburner "catalytic oxidizer" model CSA-400-CAT. Our most popular system.

Clean Stream Afterburners reduce smoke, odor, VOC & CO created by commercial coffee roasters during the green coffee bean roasting process. Probat Roaster

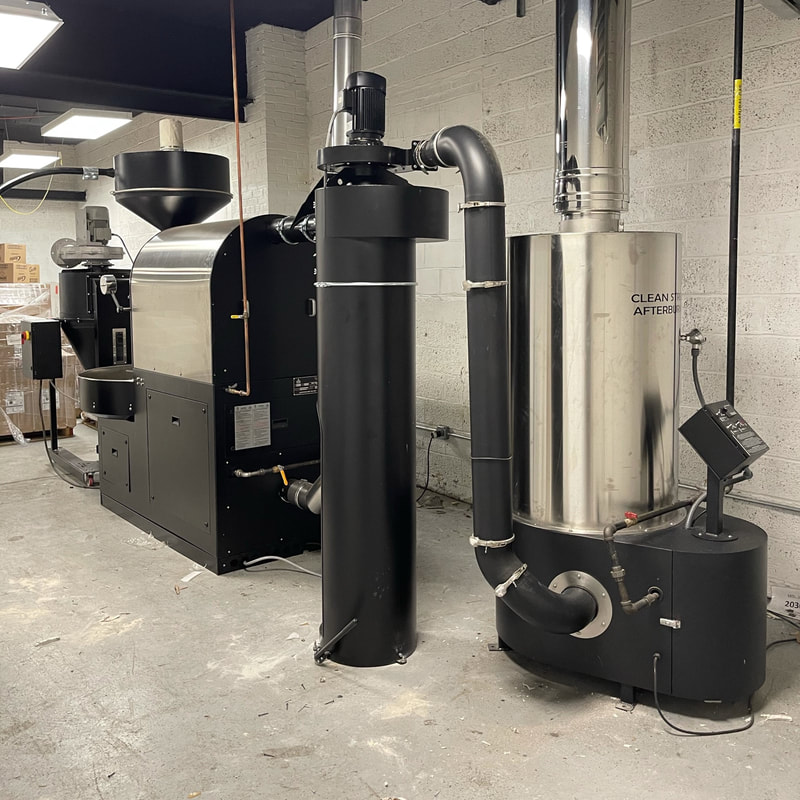

Clean Stream Afterburner "catalytic oxidizer" with a Probat P-25 Roaster

Clean Stream Afterburners reduce smoke, odor, VOC & CO created by commercial coffee roasters during the green coffee bean roasting process. Primo Roaster

Clean Stream Afterburner "catalytic oxidizer" with a Primo Roaster

Clean Stream Afterburners reduce smoke, odor, VOC & CO created by commercial coffee roasters during the green coffee bean roasting process. Mill City Roaster

Clean Stream Afterburner "catalytic oxidizer" with a Mill City Roaster

Catalytic Oxidizer System Features

Highly Fuel Efficient - Huge gas savings over standard systems
Metallic Catalyst Module achieves 95% Destruction Efficiency
Be Green! - with high efficiency and low pollution
Will meet strict emission control standards and requirements
Mini-helic gauge and High-Pressure shut-off switch standard
UL components by Honeywell, Midco, Hoffman and Belimo
Proprietary Compact, Efficient & Modern Design

Low Operating Temp - Only 750 F
Gas flow is automatically modulated for efficiency
Thick layer of insulation keeps the outer shell safe to touch
Center is completely lined with 316L Stainless Steel
3-year warranty - One of the best in the business!
Typically ready to ship in 4-6 weeks
Financing and lease options available
Made in the USA by highly skilled craftsman

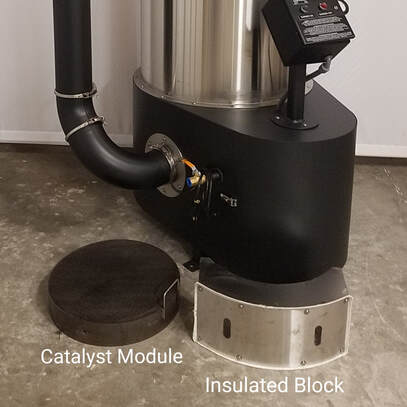

The Catalyst Module
All Clean Stream Afterburner "catalytic oxidizer" systems have a removable catalyst module. The catalyst facilitates the break down of smoke, odor, VOC and CO by about 95% at only 750 F.

Catalyst Maintenance
Over time, chaff and residue may accumulate on the catalyst, which will require cleaning with compressed air or a shop-vac with brush attachment. To remove the catalyst, simply unlatch the curved access door located towards the top of the afterburner, remove the insulated "cover block", and slide out the "catalyst module". It's that easy!

The Control Panel
All Clean Stream Afterburner "catalytic oxidizer" systems have a sleek Hoffman control panel, complete with a high quality Honeywell UDC1200 temperature controller, which is the brain of the whole system. It will read the current temperature inside the afterburner and automatically adjust the burner output as needed, keeping the system right around 750 F at all times. Also standard are a "main power" switch, "burner on/off" illuminated push buttons, and a Mini-helic gauge to measure back-pressure in the chamber.

Optional Connection Ducting
Our optional connection ducting is used to connect your chaff cyclone outlet to the Clean Stream inlet duct. We use quality galvanized ducting which is powder-coated to match the system base (flat black is standard). Duct sections are held together with a set of 304 SS v-clamps, which accent the system nicely. We can provide a custom reducers/adapters to connect with your cyclone.

Options and Accessories

We offer several standard size afterburners to accommodate all size roasters
Placement of the inlet duct, gas and power cord on either the left or right side
Various color options available for the base & control panel (matte black is standard)
Optional quick-clamp connection ducting, powder-coated to match the system
Waterproofing and remote control panel for outdoor installations

Isn't it time to get a Clean Stream?
Contact us for a detailed proposal and please be sure to
include your roaster details.
